Product Details
＋
- Efficient, single-handed soldering
- Precise operation for highest quality work
- Nonstick coating inside solder feed tube (no flux adhesion; save on maintenance costs)
- Integrated start / stop / standby functions conserves energy and extends the service life of the unit
- Amount of solder can be pre-set for efficient use. Feed motion is adjustable from 1 mm/s to 27.5 mm/s (0.04 in./s to 1.08 in.s)
- Timer mode: a defined amount of solder is applied each time the finger switch is depressed (LED on)
- Pulse mode: the solder wire is continuously delivered as long as the switch is pressed (LED off)
- Compatible with Weller WX series soldering and rework base stations (sold separately)
- Compatible with 0.5mm, 0.8mm, and 1.0 mm solder wire diameters

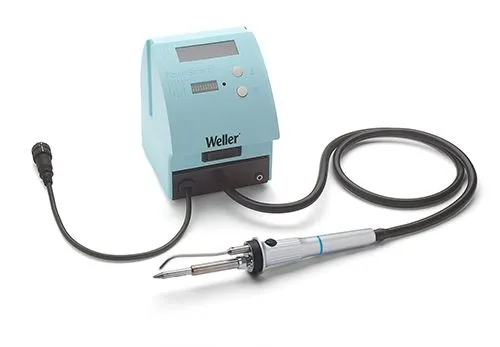

- Consists of WXSF80 solder feeder unit, XTB (2.4 mm) soldering tip, 120W soldering iron with integrated solder feeder
- Voltage 24 V AC
- Heating output: 126 W
- Temperature Range: 100 - 450°C
- Temperature Range: 200 - 850°F
- Heat-up Time (ca) in Seconds (50-350°C / 120-660°F): 14
- Connectable To: WX 1, WX 2, WXD 2, WXA 2, WXR 3
- Power Unit: WX 1, WX 2, WXD 2, WXA 2, WXR 3
- Tip Family: XT
- Power Response Heating Element Technology
- WX Compatible
