Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | PT 5-HF-12 DC-ST |
| Approvals | UL Listed, cUL Listed, cULus Listed, UL Listed, EAC, EAC, DNV GL |
| Configuration | Two-Section, Divisible |
| Current, Surge | 20 kA |
| Dimensions | 45mm L x 17.7mm W x 52mm H |
| For Use With | Data/Comm |
| IP Rating | IP20 |
| Mounting Type | Socket Mount |
| Number of Conductors | 8 |
| Operating Temperature | -40 to 85 °C |

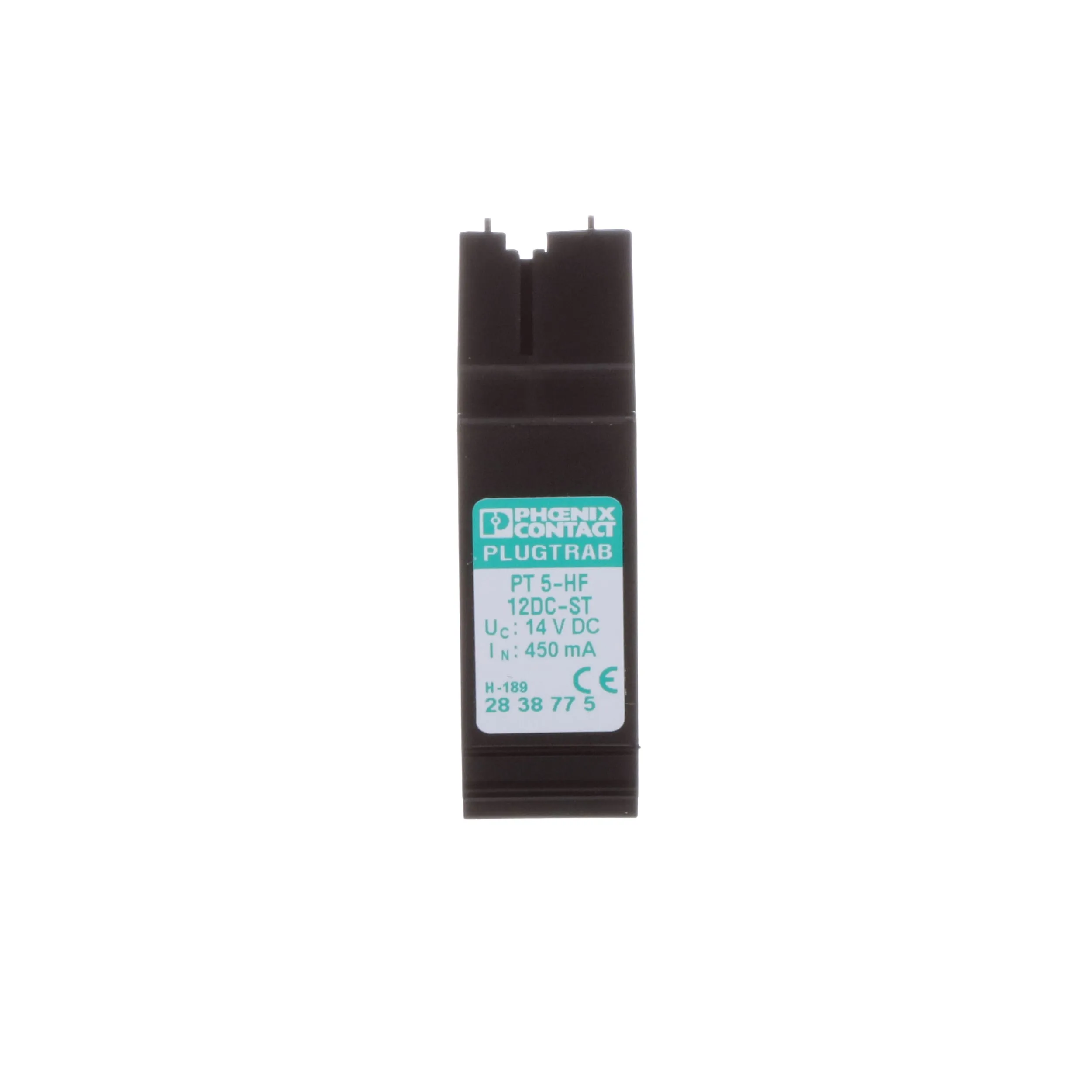

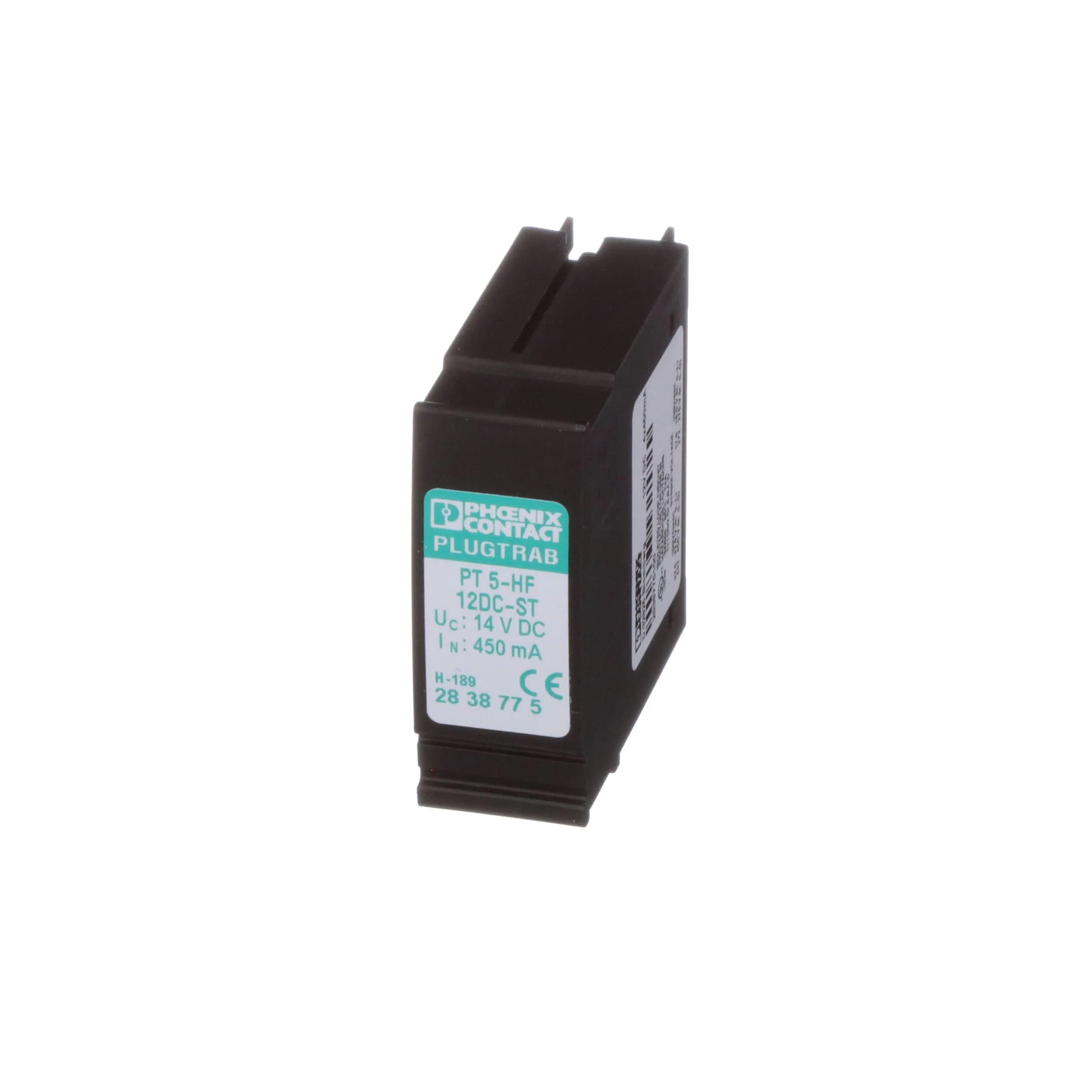

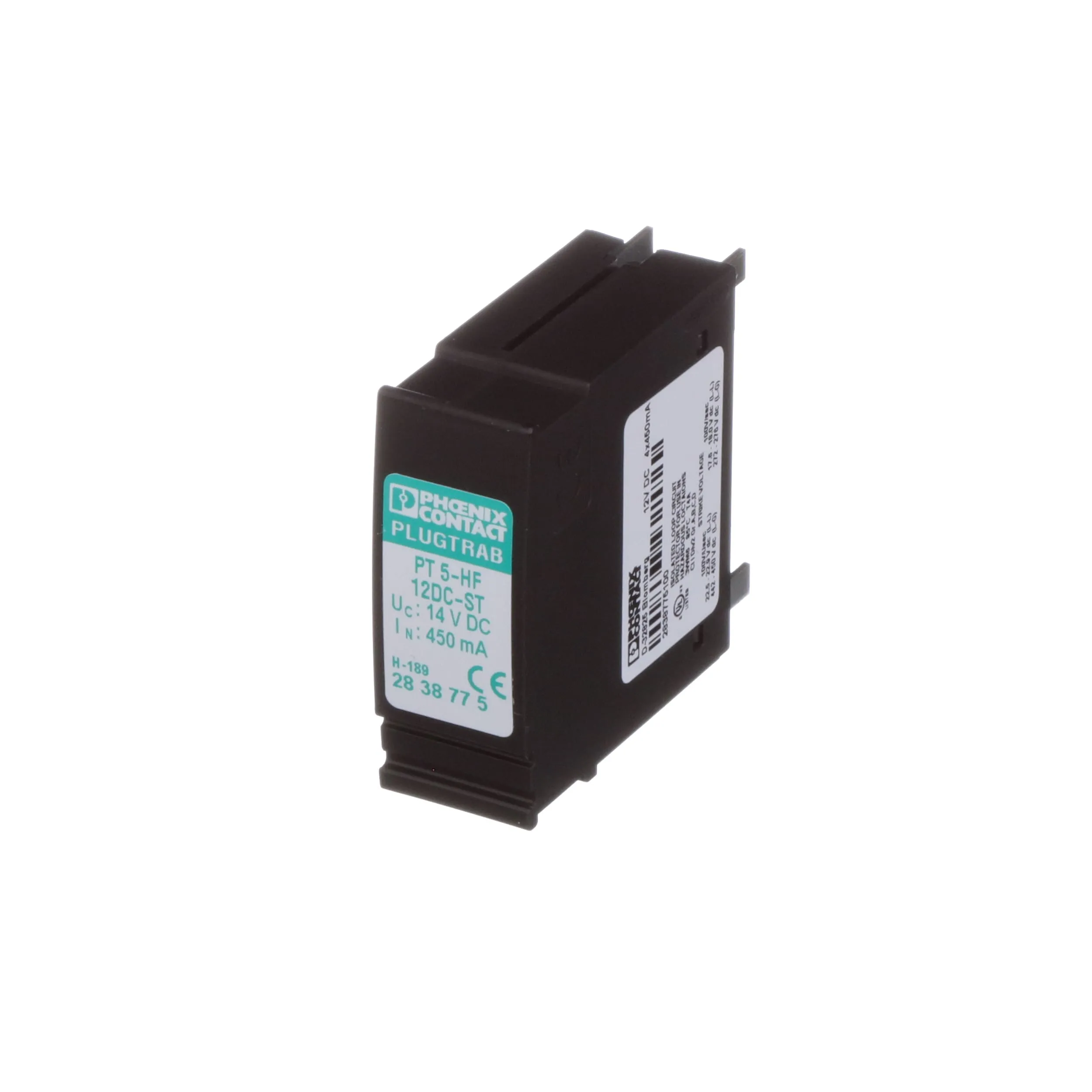

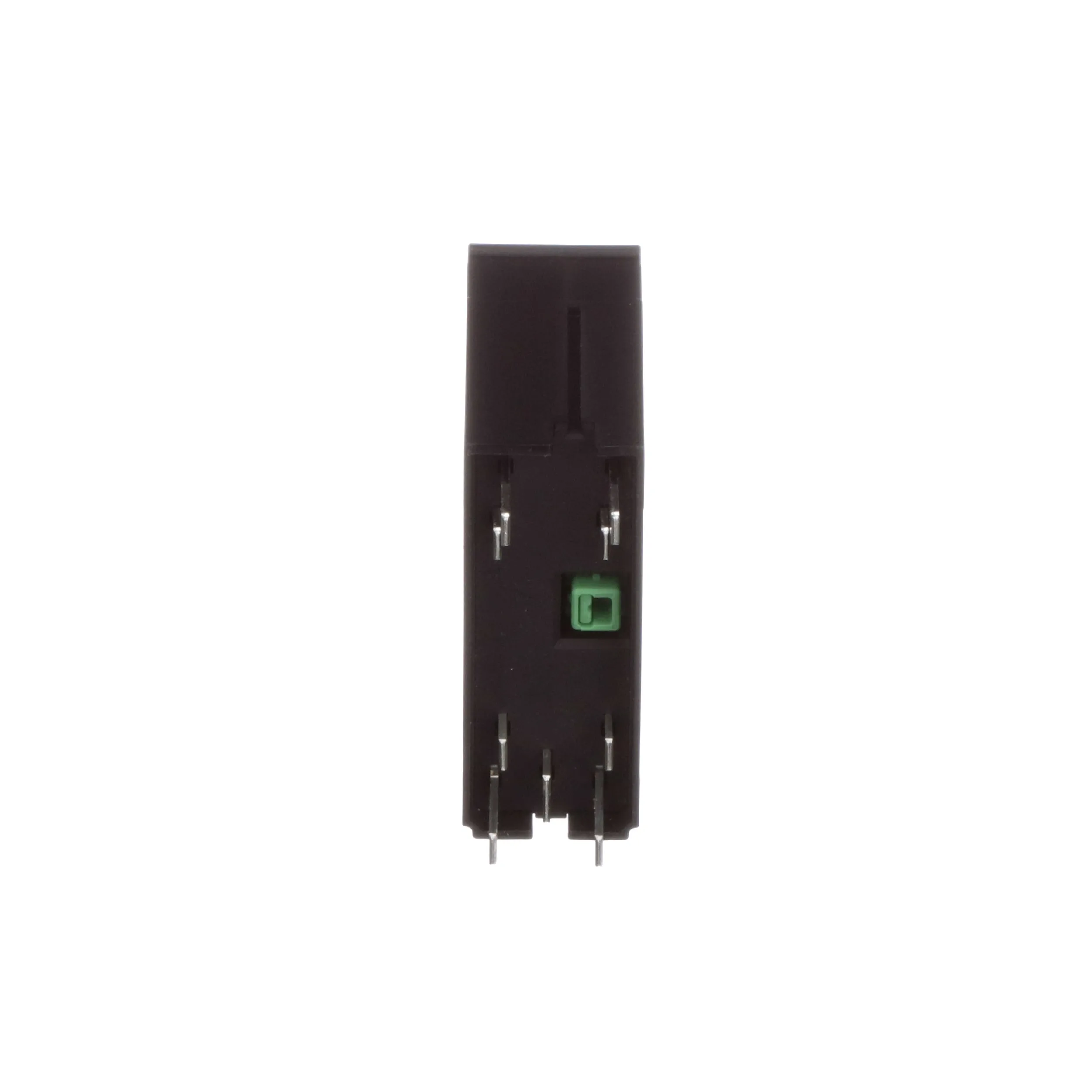

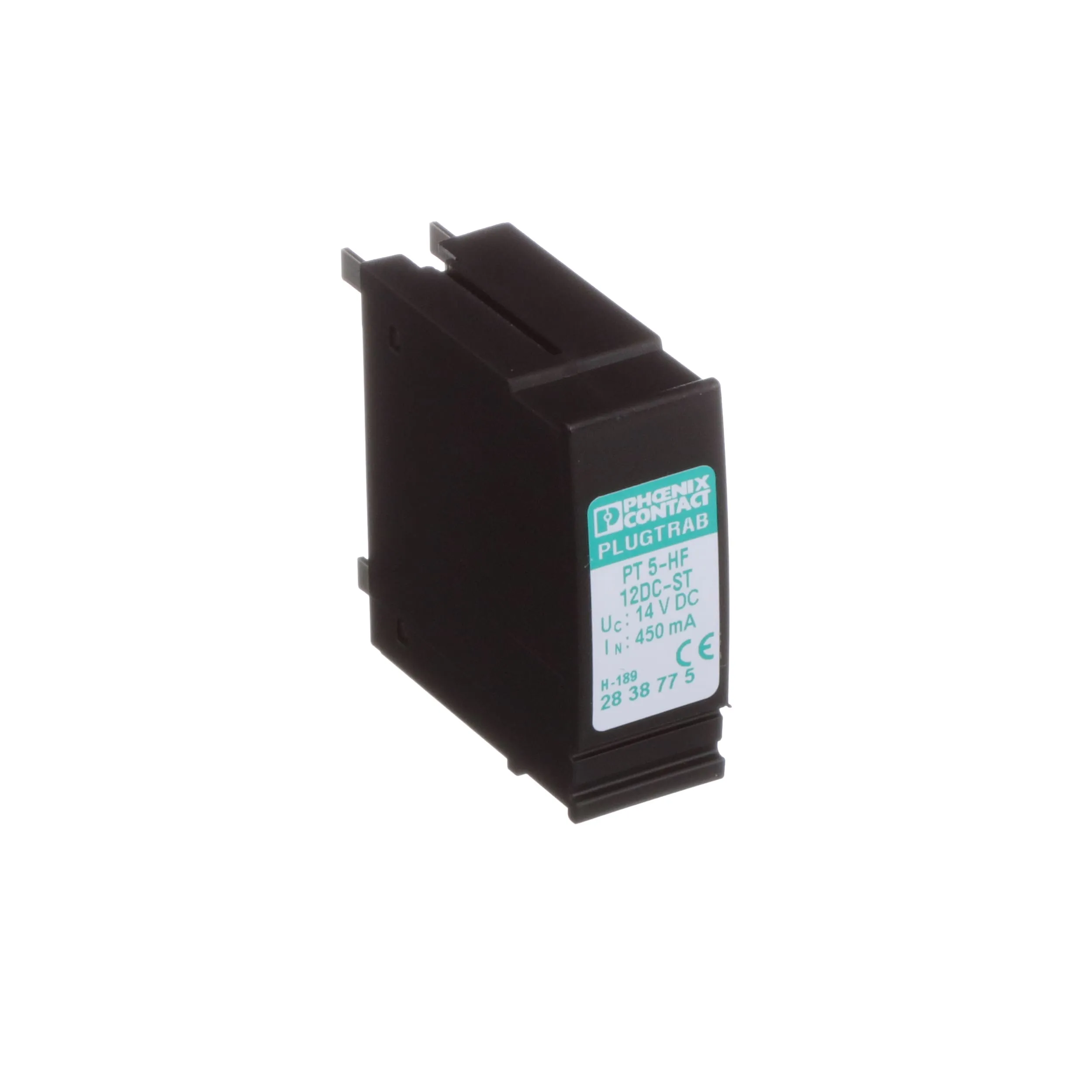

| Product Header | Protective Plug PT with HF Protective Circuit |
| Response Time | 500 ns |
| Series | |
| Standards | UL Listed |
| Supply Voltage | 12 VDC |
| Termination | Screw |
| Type | Network |
| UPC Code | 4017918480646 |
| Voltage Rating | 12 VDC |
| Voltage, Operating | 14 VDC |
| Wire Size | 24-12 AWG |
Overview
These modules are designed especially for protecting industrial bus systems such as Interbus, Profibus, Data-Highway and Modbus. The PT 5-HF Series of products protect up to four data signal conditioners. The specially designed circuit provides high-speed SAD technology normal mode (line-to-line) and gas discharge tube technology common mode (line-to-ground) for all signal conductors.
