General:

Input voltage range (3S-6S operation): 9 - 26VDC

1 Battery input & 4 ESC outputs

Regulated 5V and 12V outputs

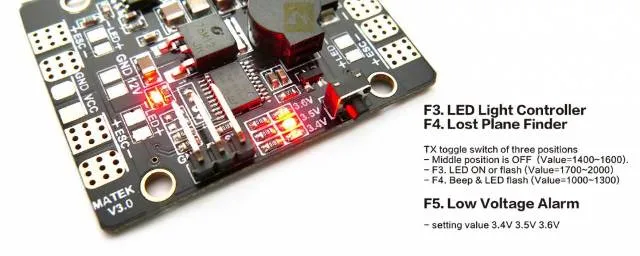

LED power indicators ( 5V & 12V outputs )

4 pairs 5V LED light pads

Low voltage setting value indicators

Physical:

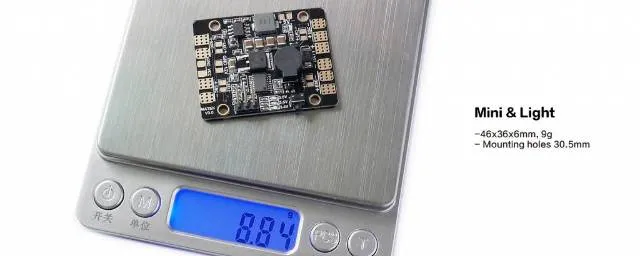

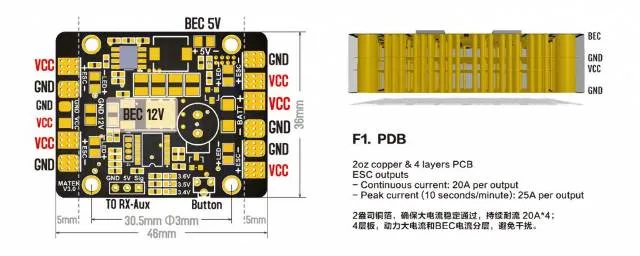

- Dimensions: 46x36x6mm, Weight: 9g

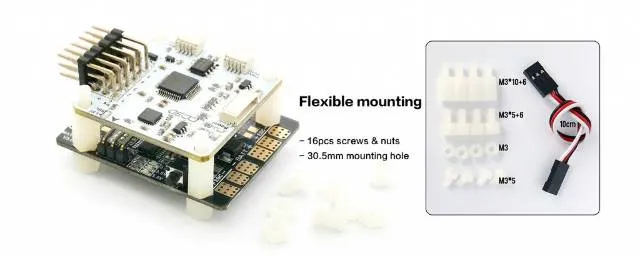

- Mounting holes 30.5mm square spacing

Continuous current: 20A per output

Peak current (10 seconds/minute): 25A per output

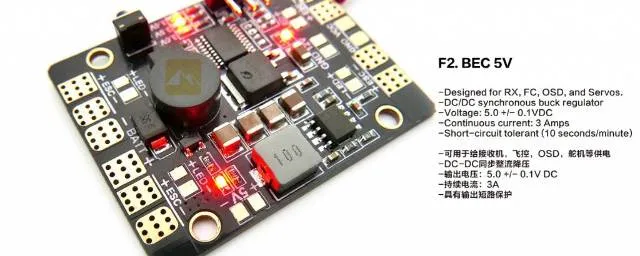

Designed for RC Receivers, Flight controllers, OSD, and Servos.

DC/DC synchronous buck regulator, Efficiency is up to 95%.

Voltage: 5.0 /- 0.1VDC

Continuous current: 3 Amps

Short-circuit tolerant (10 seconds/minute)
