The SparkFun Joystick Shield Kit contains all the parts you need to enable your Arduino with a joystick! The shield sits on top of your Arduino and turns it into a simple controller. Five momentary push buttons (4 joystick select button) and a two-axis thumb joystick gives your Arduino functionality on the level of old . Soldering is required, but it’s relatively easy and requires minimal tools. We even have a !
The momentary push buttons are connected to Arduino digital pins 2-6; when pressed they will pull the pin low (utilizing the internal pull-ups of the Arduino). Vertical movement of the joystick will produce a proportional analog voltage on analog pin 0, likewise, horizontal movement of the joystick can be tracked on analog pin 1.

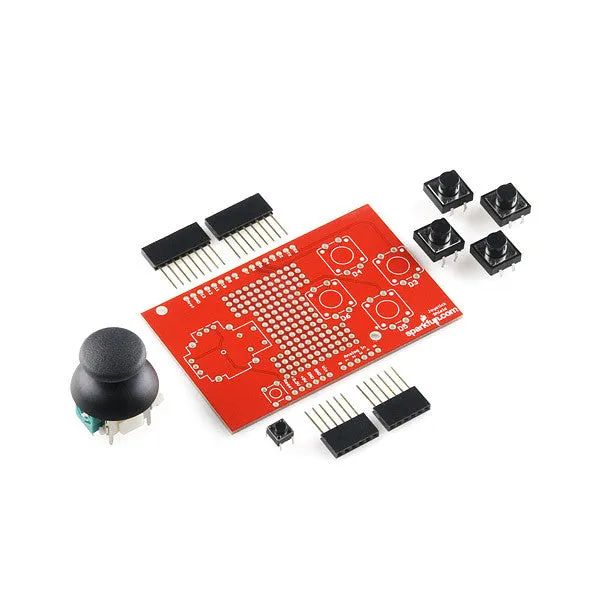

Kit Includes:
- 1x
- 4x
- 1x
- 1x (breaks out Arduino’s reset switch)
- 2x
- 2x
Documents:
| Brand: | Sparkfun |
| Brand Part Number: | DEV-09760 |
| Our Part Number: | h4517 |
