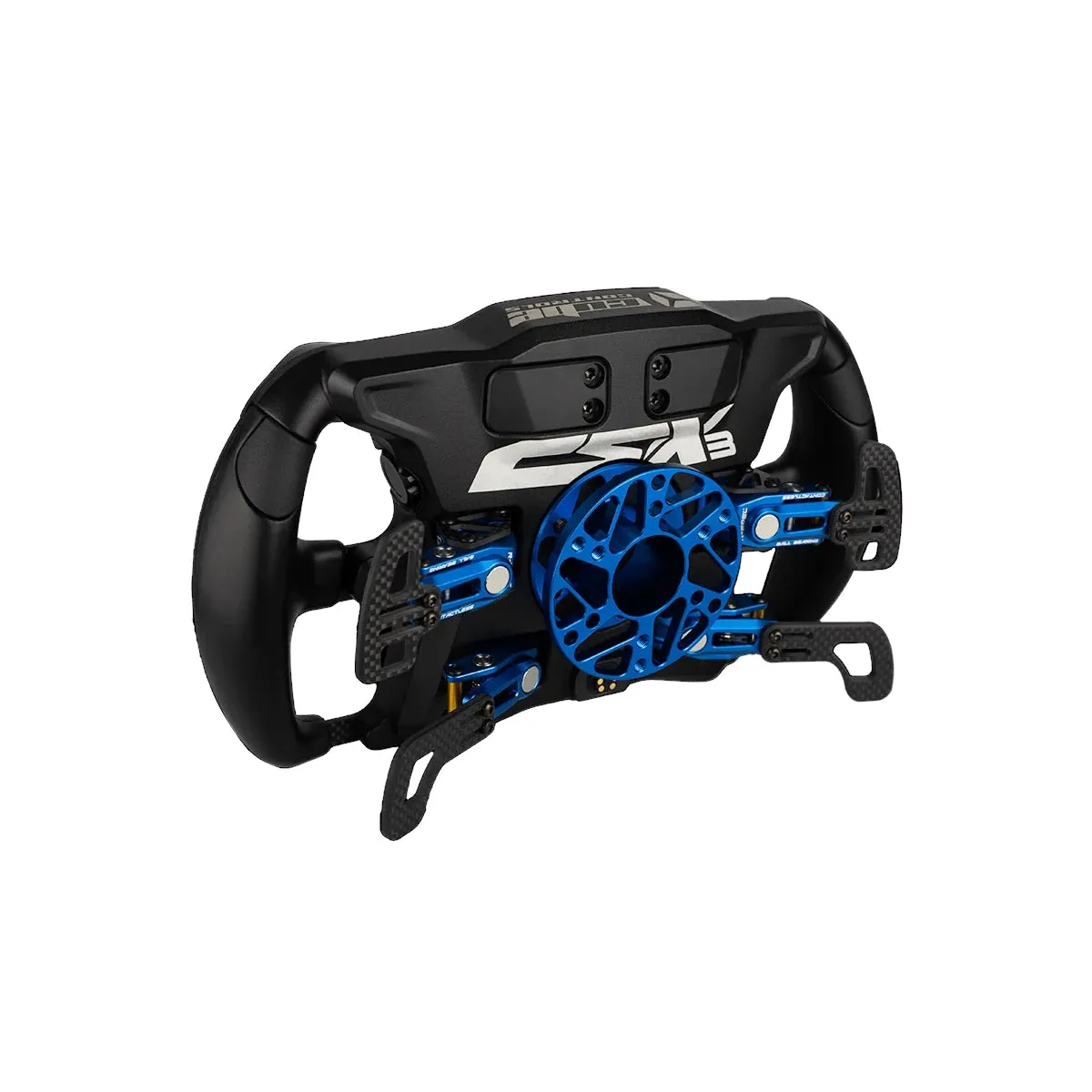

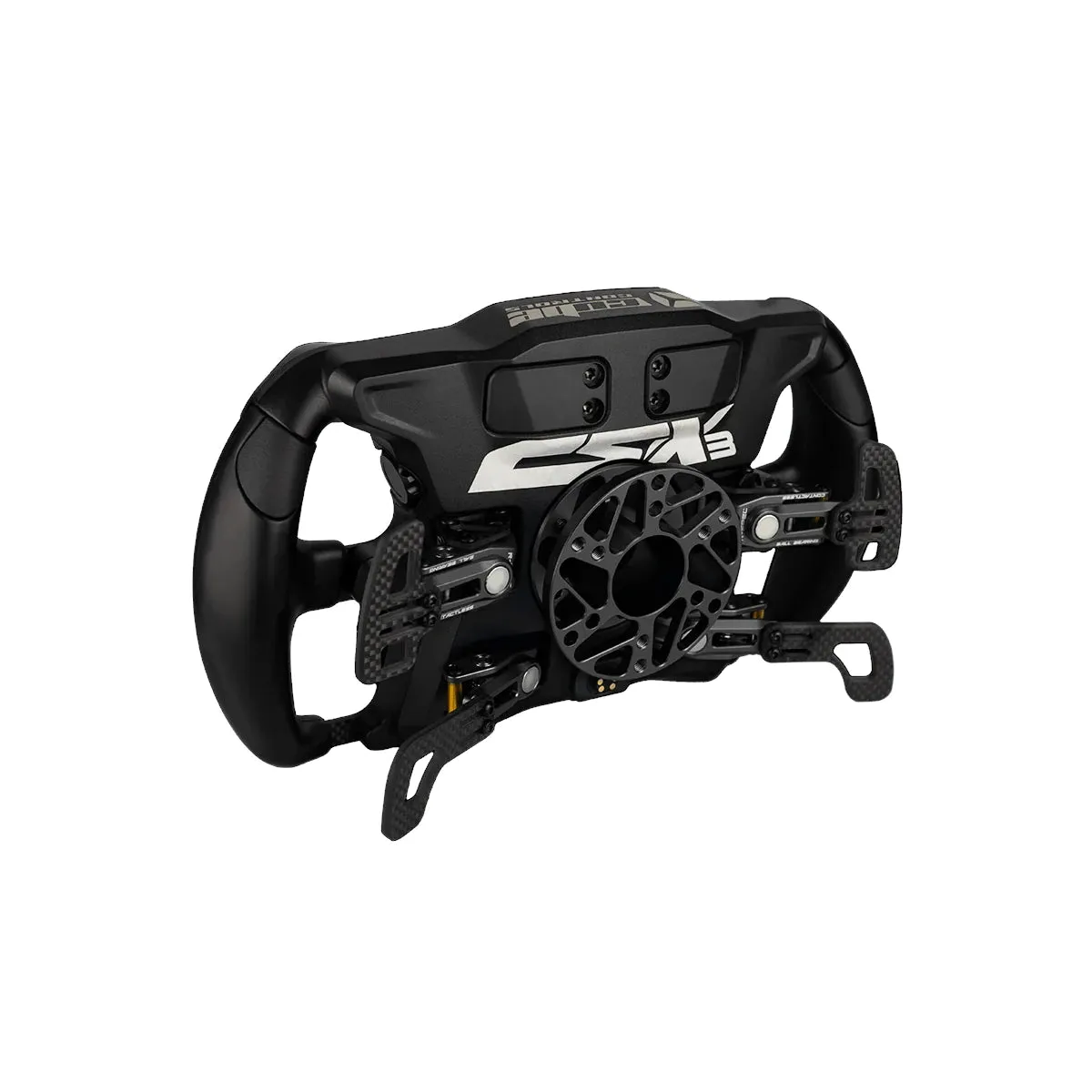

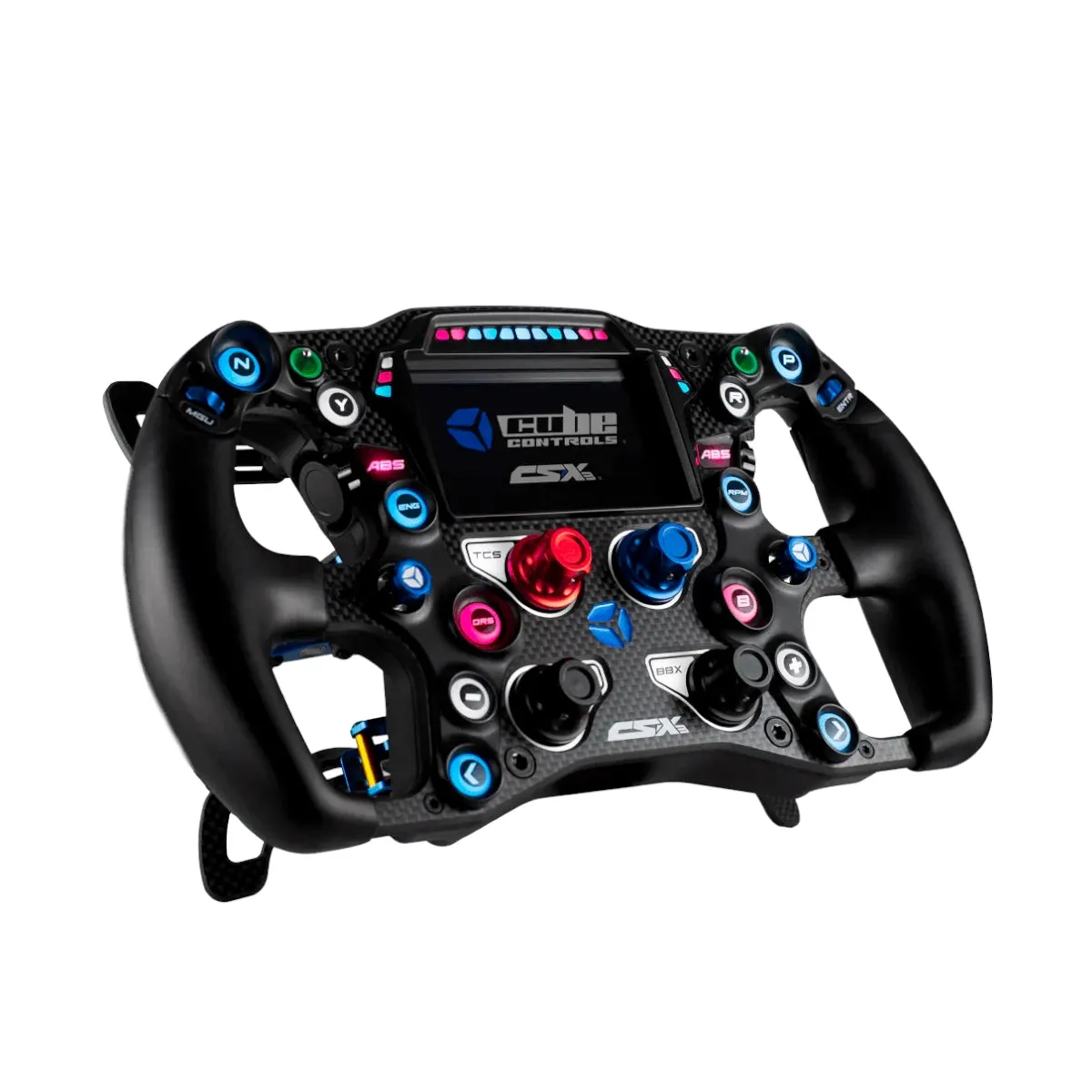

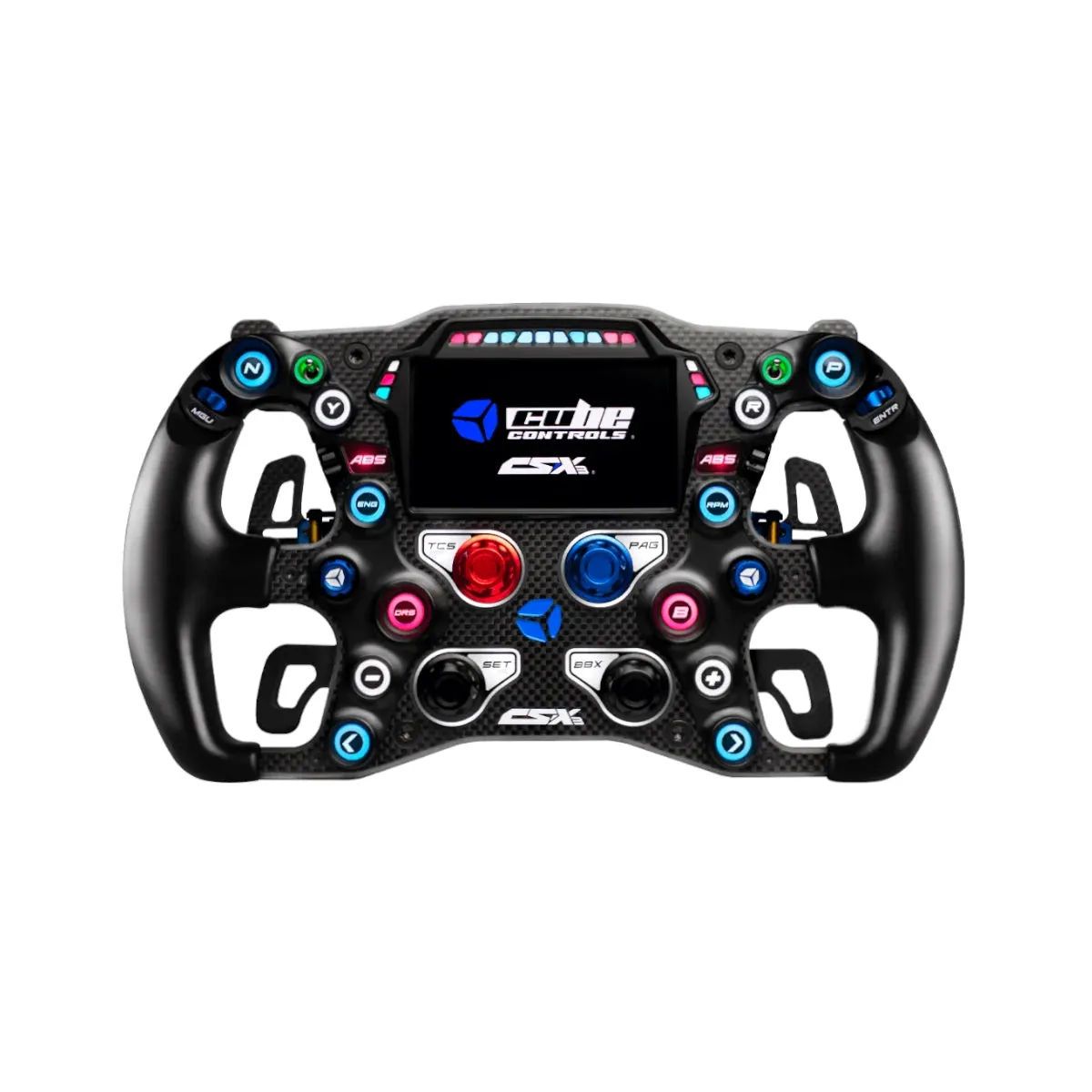

Cube Controls - CSX-3 - 4 Paddles

CSX-3 is the highly recommended choice for a top-tier racing performance. It incorporates all the benefits of the best F-PRO features combined with the game-changer options of a steering wheel with display, now touch-screen for faster interactions. Thanks to the compatibility with SimHub, the customization of your dashboard layouts and RGB LEDs guarantees a whole new level of possibilities. The optional paddle set in CFRP (carbon fiber reinforced polymer), will secure total control over your race.

Featuring Q-conn connection, customizable RGB LEDs buttons, full-colors touch-screen LCD display, and completely renovated electronics. 100% pure carbon fiber front plate, CNC aluminum main body, knobs and joystick. Optional extra paddle set.

Formula CSX-3
4″ 800×480 LCD with touch screen	√
Native Simhub support	√
RGB LEDs	17
All buttons, dials and LED bars compatible with Simhub via a dedicated plugin	√
Optional set of extra CORE paddles	√
Momentary buttons	12
On/off toggle switches with status led	2
Grip-to-Grip wheel length	28,2 cm
Grip max diameter	45 mm
Proprietary custom-made tactile button assembly	√
Improved button guards with better ergonomics and feeling	√
Straight back charging connector	√
Backlit buttons	√
Clutches	√
Front rotary encoders	4
Thumb rotary encoders	2
Thumb rotary encoders integrated into the grips	2
Launch control clutch system	√
Multi-directional joystick with integrated encoder	2
On/off pushbutton on the backside of the wheel	√
In-software clutch and shifters configuration	√
Pure carbon fiber front plate	√
Wheel hub compatible with standard formula-style quick-release hubs (3 bolts, 1-inch and 70mm PCD)	√
Weight	1143 gr
VR friendly	√
Q-conn magnetic connection cable	√
Customizable RGB LEDs buttons and dials	√
Completely redesigned zero-play short-throw custom-designed magnetic switchless shifter paddles with adjustable stop ends, ball bearing and improved tactile feedback	√
Die-cast aluminum main body	√

Downloads

For previous firmware and software iterations check the Media/Download section of the site.

FAQ

How can I calibrate the shifter paddles?

CSX-3 allows you to easily calibrate the shifter paddles, adjust the bite-point of the clutches and customize the light of the buttons through its proprietary software. You can find it in the section.

How can I get the software?

In the download section, you can find the latest version of the software. New firmware versions will be periodically released to improve the system stability and bring new options.

Is the magnetic connector strong enough?

Absolutely. It’s specifically designed to ensure a secure connection while keeping safe the product in case too many strong forces will be applied to the connector.
