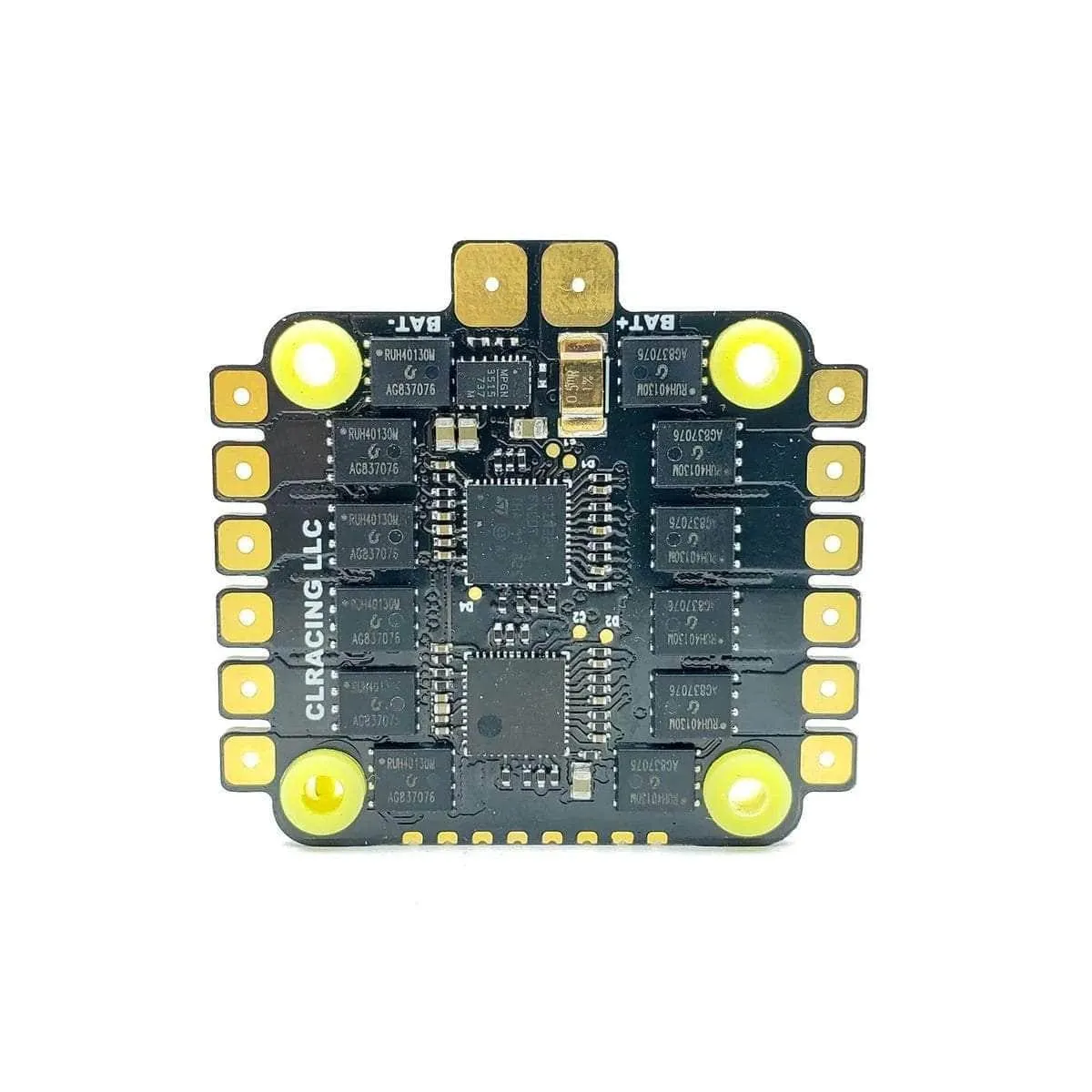

Check out this ESC with 32Bit for processing and 45Amps to work with, making this 30x30 4in1 board a great choice for your builds. Also this is the replacement ESC for the CLRACING F7/4in1 stack combo. If used with other flight controllers please make sure you have the correct harness pinout to avoid damaging your flight controller.

Check out all our  and our full range of !

Specifications

• Input Voltage: 2-6S

• Max. Continuous Current: 45A
• Max. Burst Current: 55A
• Firmware: BLHeli_32
• Support: Dshot300-1200/MultiShot/OneShot/ProShot/PMW
• Current Sensor: Yes

• Current Sensor Scale: 250
• Dimensions 43.5mm x 46.5mm

• Mounting Dimensions: 30.5x30.5mm Φ4mm
• Size : 43.5mm x 46.5mm
• Weight: 13.5g

Includes

• 1x CLRacing 32Bit 45A V2 2-6S 30x30 4in1 ESC
• 10x M3x5mm nylon thread through spacers
• 5x M3x25mm nylon screws
• 5x M3 nylon nuts
• 5x Yellow Grummits
• 2x 14 AWG 80mm Silicone wires
• 1x connection cable
• 1x Amass XT60
• 1x Rubycon 1000uf 35v ZLH capacitor
