Product Details
＋
The PDMs offer four different Power Outputs Levels:
Power Outputs PDM08
- 1 with serie diode rated up to 20 A
- 1 rated up to 25 A
- 6 rated up to 15 A
- Protected for: over voltage, under voltage, over current, over temperature
- All outputs have internal freewheeling diode
- Total max current: 100 A
Each output provides status feedback for open circuit, short circuit, high temperature, over current, under voltage and over voltage. Inrush current, number of fault retries and the time between retries are all definable.All the outputs may be configurable as PWM and allow soft start/stop.
For every output, a multicolor LED shows the status:
- Enabled/disabled
- Activated or not
- Fault
Inputs:
PDM08 feature the following Inputs channels:
- Analog/Digital - 6
- Only digital -
- Speed - 2

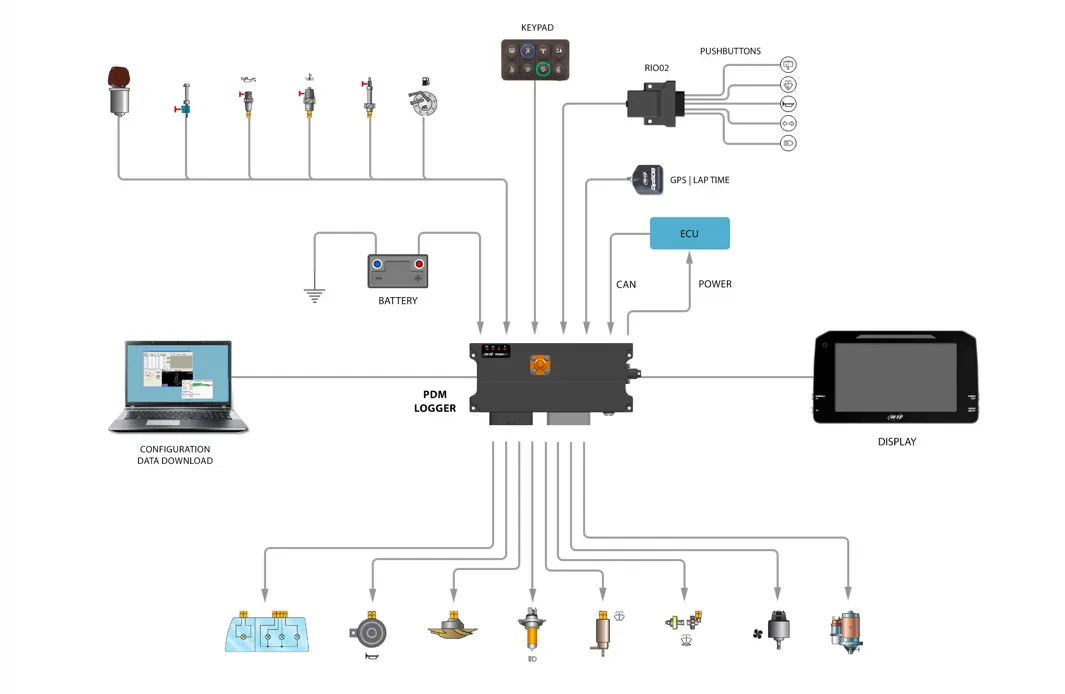

PDM08 with 08 High Side Outputs. Technical sheet can be downloaded
PDM08 User guide can be downloaded
PDM08/32 Part numbers can be downloaded
AiM PDM 08 Dash LVDS Cable
- Mating Cycles: >25
- Engagement Force: < 30N
- Engagement Force Waterproof: <40N
- Retention Force Latch: > 110N
- Disengagement Force: > 5N
- Retention Force Primary Lock: > 80N
- Retention Force Secondary Lock: > 60N
- Polarisation feature effectiveness: > 80N
- Temperature Range: -40°C 105°C
- Thermal Shock IEC: 60068-2-64
- Vibration IEC: 60068-2-64
