Abdomen Phantom - PV Mixed Cylinders

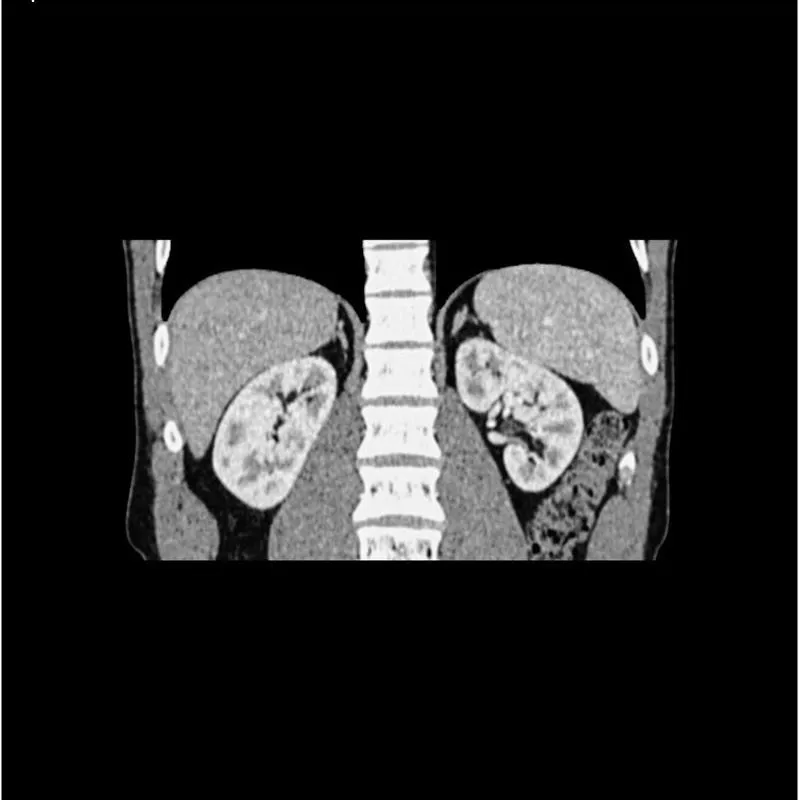

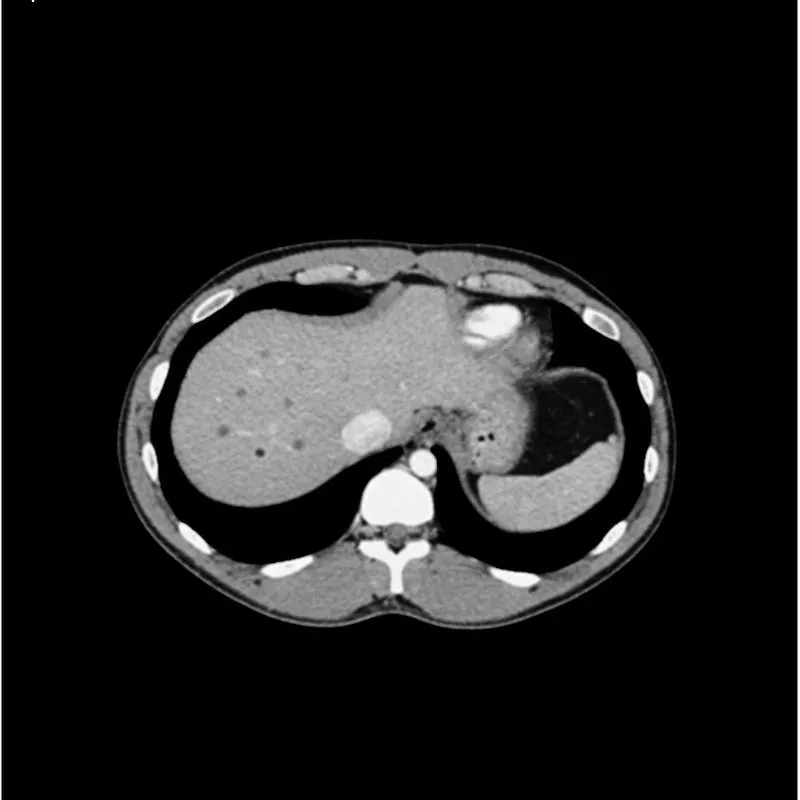

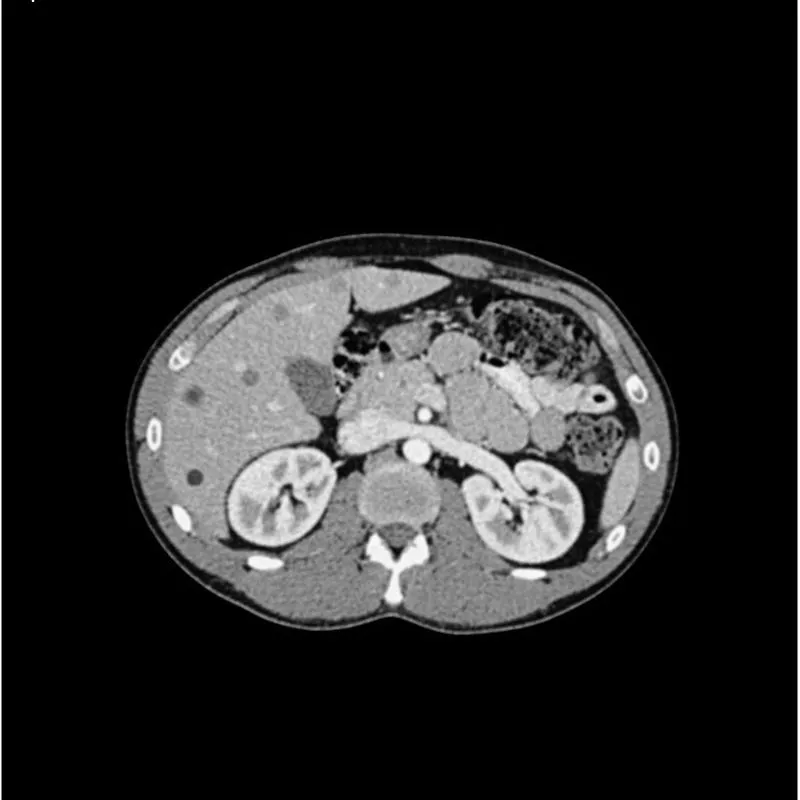

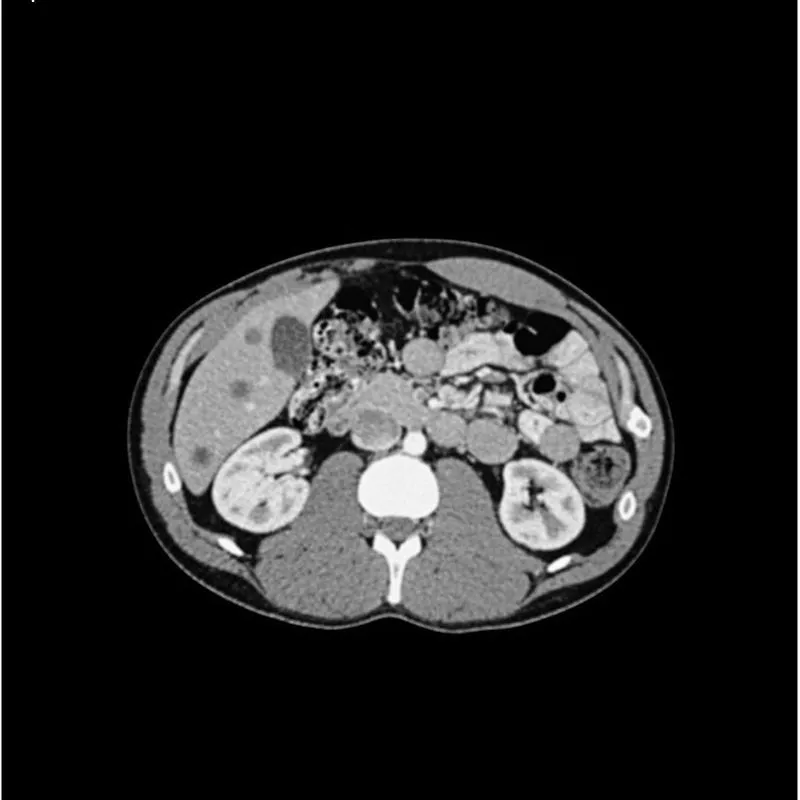

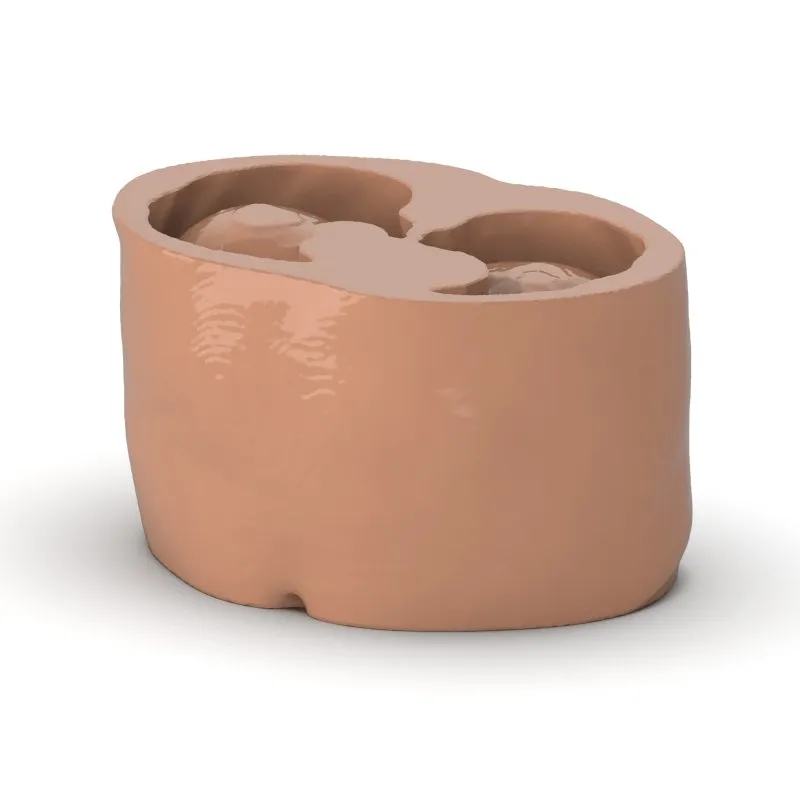

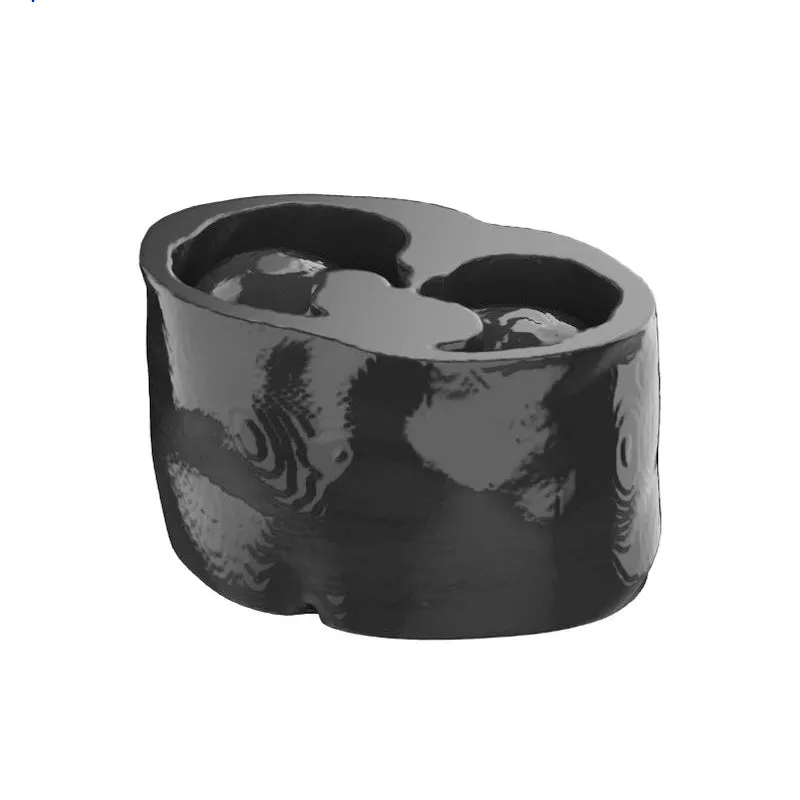

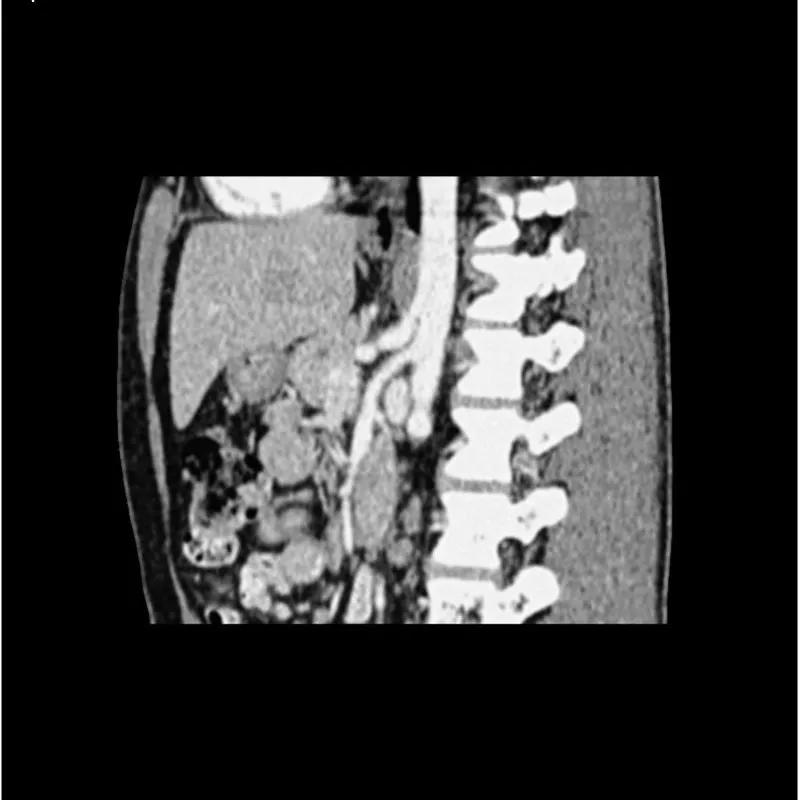

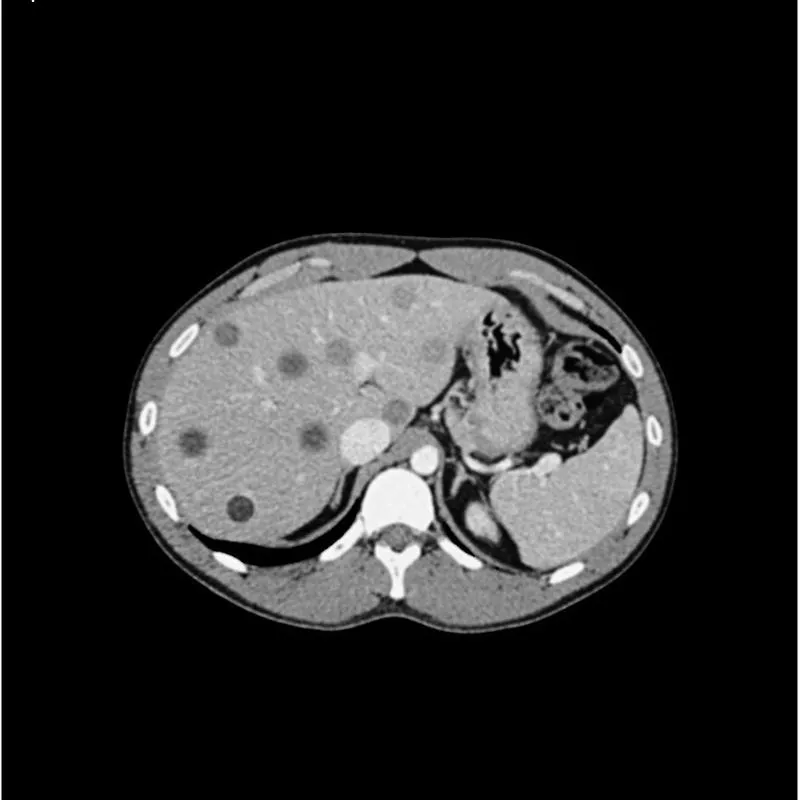

This phantom simulates a contrast medium enhanced abdomen in portal venous phase. It covers the eleventh thoracic vertebra to the fourth lumbar vertebra (partially included). The phantom has 35 rod-shaped liver lesions with 5 to 15 mm diameter and lesion contrasts of 25 to 110 HU to the surrounding liver.

The phantom can be used in CT (including CBCT) to evaluate and optimize imaging performance and post-processing applications, including AI-enabled applications. It is also suited for training purposes. The phantom provides a detailed and realistic simulation of soft and bone tissue. Air voids are filled with a cellulose-polymer composite of approx. -160 HU.

SPECIFICATIONS:

Size: Approx. 27 x 19 x 15 cm
Weight: Approx. 5 kg
Base material: Cellulose-polymer composite
Optimal tube voltage: 120 kVp – (adaptable upon request)

DIAGNOSTIC FEATURES:

Realistic simulation of vasculature, bone and soft tissues, including the liver, gallbladder, pancreas, spleen, adrenals, kidneys, stomach, small intestine and colon.

Lesion diameter: 5 to 15 mm
Lesions contrasts: 25 to 110 HU at 120 kVp

Section 1: 8 lesions
Section 2: 9 lesions
Section 3: 9 lesions
Section 4: 6 lesions
Section 5: 3 lesions

The following accessories are available for this phantom:

5 cm Fat Ring For Abdomen Phantom ()
2.5 cm Fat Ring For Abdomen Phantom ()

General indications:

The phantom is made of a cellulose-polymer composite material with properties similar to hardwood. If handled carefully, it will last a long time.
The phantom is coated with a protective layer. If the protective layer is undamaged, the phantom can be cleaned using a damp cloth (water or mild detergent)
Protect from direct sunlight.
Maintain a storage temperature of 10°C to 30°C. If the phantom is exposed to temperatures below -10°C or above 45°C, it can be severely damaged.
The phantom is not equipped for dose measurements with dosimeters and it is not suited for material characterization with dual energy CT.
The phantom is not certified as medical device.
Air voids are filled with cellulose-polymer composite of approx. -160 HU.
